The MADRIX Software is the ultimate control tool for LED lighting.
Use pixel mapping at its best in 2D or 3D.
MADRIX is a software, and so much more.
It is a tool for generative content and premier LED lighting controller since 2005.
It is a quality piece of engineering made in Germany. It makes stunning LED lighting designs possible.
Ultimate Control
From the smallest projects to the biggest ones – get the best out of your LEDs. MADRIX can produce a complete LED light show from a normal computer or laptop. Still, it can drive tens of thousands of LEDs without problems. This powerful software will not only allow you to control nearly any 2D LED display in every possible way, but real 3D LED applications as well. This makes it the ideal solution for your LED project.
Ultimate Flexibility
Bring your LED design to life with beautiful colors, stunning visuals, and spectacular effects. MADRIX adapts to your needs. Use it as LED lighting controller, VJ software, 2D pixel mapper, 3D voxel mapper, media server, or media creator. This software is easy to use with a VJ-like operation, 2 decks and a crossfader, plus 3 real-time previews to show your effects in advance.
2D Pixel Mapping
MADRIX makes it possible to control numerous LED fixtures; also of different kinds. Position them according to your needs in nearly any form or shape. Map pixel by pixel and achieve pixel-perfect results, even with the lowest of pixel resolutions. The result are crisp and sharp visuals on your LEDs.
3D Voxel Mapping In X, Y, And Z
The MADRIX Software provides a leading-edge feature set to fully control real 3D LED matrices. MADRIX supports volume rendering (voxel mapping). This approach is fundamentally different to the 3D projections or the physical layout of 2D surface areas that are widely known nowadays. It makes state-of- the-art installations a reality.
Combine 2D And 3D
Combine any 2D project with 3D elements in order to create even more spectacular attractions for your audience, customers, and clients. MADRIX is a powerful tool that will help you realize the projects you want to build. Mapping LEDs is fast, creative, and fun. MADRIX certainly takes any LED display to the next level.
Industry Standards
For Output
MADRIX excels in flexibility. You can directly connect to a wide range of LEDs and compatible first-party or third-party LED controllers.
DMX-Based Output
- Art-Net I, II, III (Unicast & Broadcast)
- DMX512
- Insta/ROBE Protocols
- Philips Color Kinetics
KiNET (V1 / V2) - Philips Hue
- SPI (via MADRIX NEBULA )
- Streaming ACN (sACN / E1.31) (Multicast)
DVI-Based Output
- ColourSmart Link
- Colorlight A8
- Colorlight 5A
- Colorlight T9
- DVI (VGA, HDMI, etc.)
- Eurolite T9
Even more options are available via converters or bridging tools.
Output is defined trough our MADRIX KEY dongle licenses.
Industry Standards
For Input, Remote Control, And Audio
MADRIX easily integrates with other lighting desk, consoles, controllers, and many other hardware or software tools.
- Art-Net I, II, III (Unicast & Broadcast)
- ASIO
- CITP
- DMX512
- GamePort
- MA-Net 1 / MA-Net 2
- MADRIX I/O
- Media (Images, Pictures, Logos, Videos, Text, Live Capturing, Screen Capturing)
- MIDI
- Remote HTTP (Web Server)
- Streaming ACN (sACN / E1.31)
- Time Code
(Art-Net / MIDI / SMPTE / System Time) - WDM
Even more options are available via converters or bridging tools.
Input is not limited by the MADRIX KEY license system.
MADRIX KEY
The MADRIX Software is secured with a USB dongle. Simply connect it to a free USB port of your computer. This also means you can freely switch between different PCs as it is not bound to a specific machine. The MADRIX KEY is the software license. Do not lose it!
License Upgrades
You can easily upgrade your MADRIX KEY to any higher license version at any time. You don't even need to send in the USB dongle. Upgrades can be handled via e-mail. Please contact your dealer.
Update To MADRIX 5
The next generation of the MADRIX Software will be MADRIX 5. If you can't wait to see the first details of what comes next, we have prepared a first look of MADRIX 5 for you.
MADRIX KEY Overview
Different MADRIX KEYs are available for different needs and LED installation sizes.
MADRIX KEY
Upgradable
DMX-Based Output
- DMX Channels
- DMX Universes
- RGB Pixels Example
DVI-Based Output
- DVI Pixels
- 2D Resolution Example
start
512 Channels
1 Universe
170 Pixels
dvi start
512 Pixels
32 x 16 Pixels
entry
2,048 Channels
4 Universes
682 Pixels
dvi entry
4,096 Pixels
64 x 64 Pixels
MADRIX KEY
Upgradable
DMX-Based Output
- DMX Channels
- DMX Universes
- RGB Pixels Example
DVI-Based Output
- DVI Pixels
- 2D Resolution Example
basic
8,192 Channels
16 Universes
2,730 Pixels
dvi
307,200 Pixels
640 x 480 Pixels
professional
32,768 Channels
64 Universes
10,922 Pixels
786,432 Pixels
1024 x 768 Pixels
ultimate
131,072 Channels
256 Universes
43,690 Pixels
1,310,720 Pixels
1280 x 1024 Pixels
You Can Serve Media
Use the media server features and conveniently load and play back images, pictures, and videos. Or use live video signal capturing, screen capturing, scrolling text (ticker), and more. But what if you are not using a video screen at all? Videos are great media for rectangular screens, but the possibilities are quickly exhausted for creative 2D LED setups or 3D.
But Often, Video Is Not Enough
The MADRIX Software is an effect generator with media server features and outstanding capabilities to display unique real-time effects on your LEDs. This is the main advantage. Endless stunning and fully customizable visuals are created live for you with the built-in graphics engine and rendering engine. From simple colors to sophisticated visuals – all is possible.
Audio-Based Effects
MADRIX features a state-of-the-art audio analysis. It can process any live audio signal and create stunning real-time lighting visuals. These live effects will create a light show that runs in sync with your music. And thanks to the integrated effects generator, you can also create many lighting patterns without audio input. On top, you will find an unprecedented level of customization available for all visuals.
Ultimate Creativity
Creating stunning light effects has never been easier. Use video-like visuals without the need for videos. Creating videos specifically for a project can be time-consuming, costly, and unpractical. Let the software produce stunning effects, visuals, and animations for you. And you can always customize everything, such as speed, color, shape, direction, size, movement, position, brightness, and much more.
Create Stunning Visuals In Seconds
MADRIX allows you to produce extraordinary live visuals. You don't need to invest a lot of time for programming. With MADRIX, you quickly create visuals and bring creative and diverse lighting effects to any LED installation. In addition, apply many advanced features you would not want to miss. Use layers of effects and media, quickly modify visuals via FX filters, combine effects via mix modes, control fixture group intensities, and many more.
Step 1

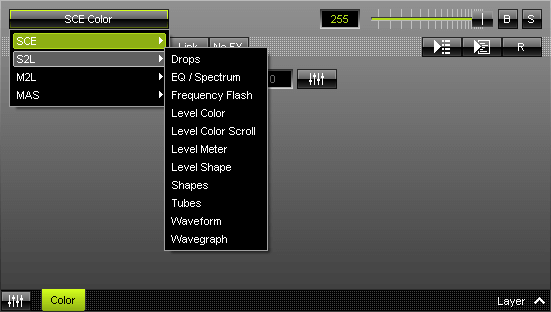

After the intial configuration, choose a MADRIX Effect from the built-in effects library with over 40 effects.
Step 2

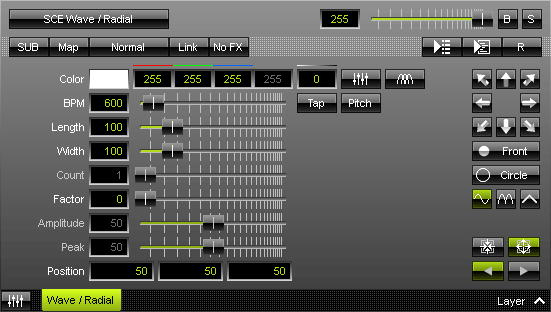

Quickly change the individual parameters as you wish, or leave the default settings.
Step 3

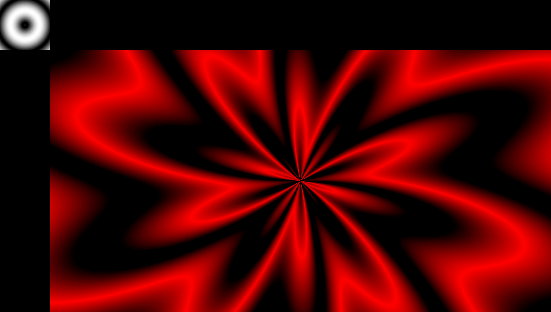

Go from default to custom in no time. It only takes a few mouse clicks to create stunning visuals.
MADRIX Effects
Choose from 4 different effect categories and over 40 built-in effects. SCE Effects do not require any sound and make up the most diverse set of patterns and effects. S2L, short for Sound2Light, brings your audio input to life. M2L, short for Music2Light, takes audio-based effects to an even deeper level. MAS allows you to create effects from scratch with the help of the advanced MADRIX scripting language.
LED Fixtures
The library already includes a large variety of fixture profiles. Use 1-channel, 2-channel, RGB, or RGBW fixtures, or any variant of these. Use the Fixture Editor for your own profiles. With MADRIX, it is easy to manage the wide range of fixtures, such as pars, tiles, tubes, tape, curtains, video screens, and more. Combine DMX-based and DVI-based LED products as needed, use different fixture types in the same setup, and control the whole installation or only parts of it. With MADRIX, you are in control.
Built-In Tools
In addition, the software includes a full range of helpful and productive tools. This includes the Fixture Editor, but also the Art-Net Time Code Sender. There is also the Logfile, Preview Benchmark, and MADRIX hardware updaters, as well as tools for restore and quick support. You can also use the DMX Fader Tool for single channel control or Task Watcher, MIDI Watcher, and DMX Watcher for performance and data monitoring.
Premium Quality
For us, it is very important to offer you the complete package. This does not only include a product that works and fits your needs, but also extensive user manuals, tutorials, a worldwide distribution network for great sales and design services, and world-class technical support. This also includes regular software updates with improvements as well as new features. MADRIX is most versatile and will help you to get the most out of modern LED technology.

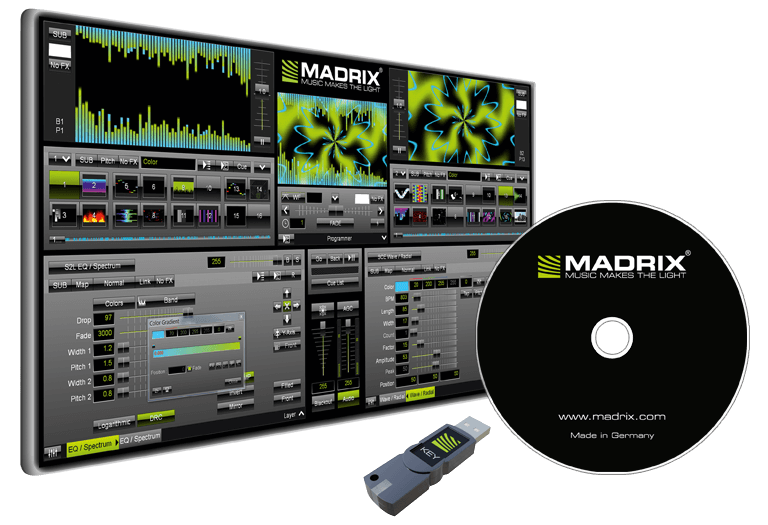

What's In The Box
The DVD case includes the very important MADRIX KEY as well as the MADRIX Software on CD, including all tools and all user manuals digitally.
