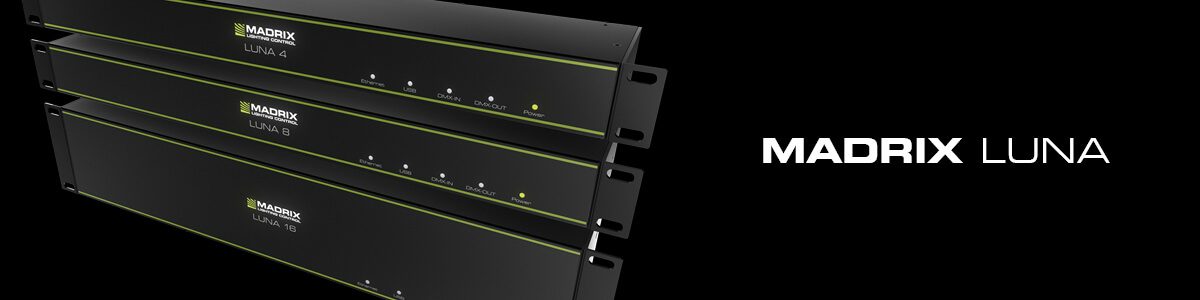

MADRIX LUNA is an easy-to-use and reliable Art-Net node or DMX512 USB interface.
Developed and made in Germany.
3 versions with different port counts are available:
LUNA 4
LUNA 8
LUNA 16
The MADRIX LUNA reliably distributes DMX512 data over long or short distances using Ethernet network or USB. Its sync mode makes sure that lighting effects look their best on the LEDs.
Art-Net Node
This device converts Art-Net data from Ethernet network to DMX512. Any small or large project greatly benefits from dependable data distribution and efficient operation.
4/8/16 DMX-OUT + 1 DMX-IN
4, 8, or 16 XLR ports (5-pin, female) distribute the equal number of DMX universes per unit. 1 XLR port (5-pin, male) can be used for DMX input. Simply use several units at the same time for larger projects.
MADRIX DMX512 USB Interface
Alternatively, you can choose to connect the unit as a plug-and-play solution to your computer and the MADRIX Software using any USB 2.0 port.
Sync Mode
MADRIX Software and hardware allow you to synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions.
Easy Configuration
MADRIX LUNA offers powerful features, especially in combination with MADRIX Software. Take full advantage of pixel mapping and voxel mapping. The installation of the device is still quick and easy.
3rd-Party Controllers
MADRIX LUNA complies with the official Art-Net specifications and can be used as a regular Art-Net unit with your other consoles, controllers, or software solutions.
Quality Design
Devices are built 19″ x 1U or 19″ x 2U. They feature a fanless, noiseless, low-energy design, a durable metal case, and NEUTRIK plugs. 2 premounted brackets make rack mounting possible. 5 indicators quickly show the status of a device.
Invaluable Features
The device is ready within seconds after startup. HTP Merging is automatically available for two Art-Net sources. You can change specific device settings using the built-in web configuration tool.

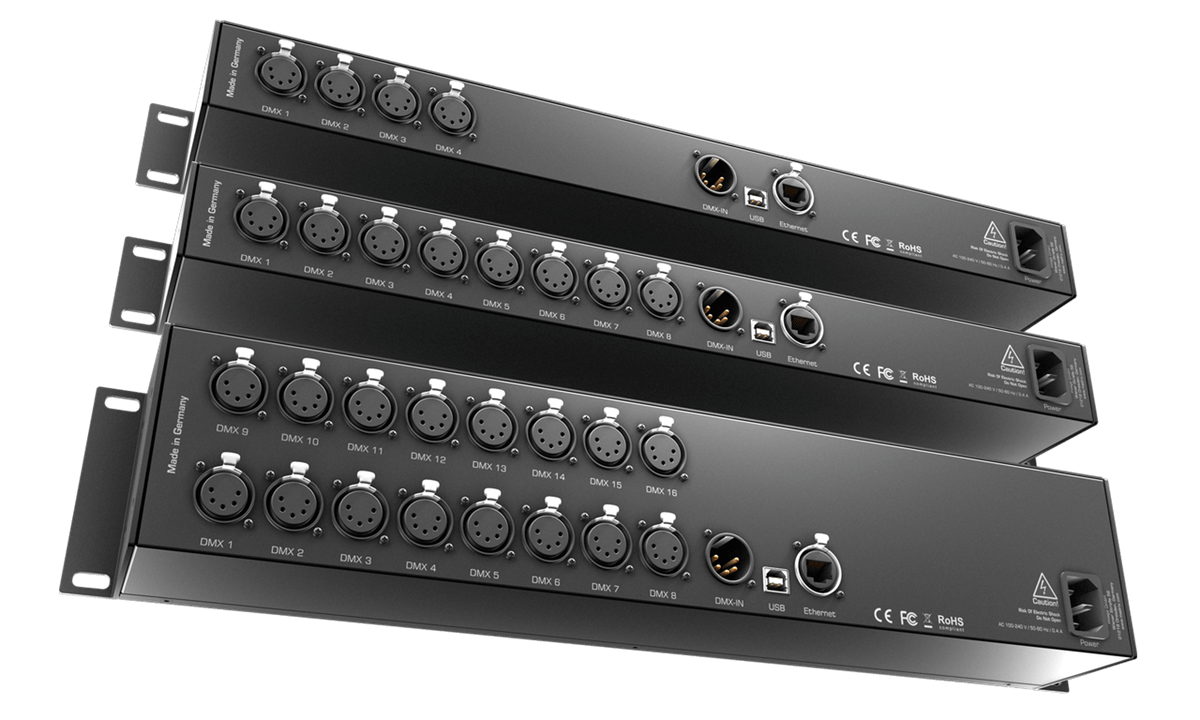

- 4x/8x/16x DMX-OUT
- 1x DMX-IN
- 1x RJ45 Ethernet port
- 1x USB port
- 1x Power socket
- MADRIX LUNA
- Power cord
- USB cable
- MADRIX Software (license not included)
- 2 rack-mount brackets
Did You Know?
As a receiving unit, the 100 MBit/s RJ45 Ethernet connection is more than enough. In our FAQs and especially for large projects, we recommend to use Art-Net and 1 GBit/s for the network switch and network card. For the sender of all the data, the higher bandwidth is required. Often, Art-Net data is sent in broadcast mode where all receivers get all the data. With the MADRIX Software however, we also support unicast with the Direct IP mode to just sent the required data to each single unit to save bandwidth. In all cases, MADRIX LUNA provides the performance you need.
