G1 Series-LED mesh display
G1 Series-LED mesh display
Features:

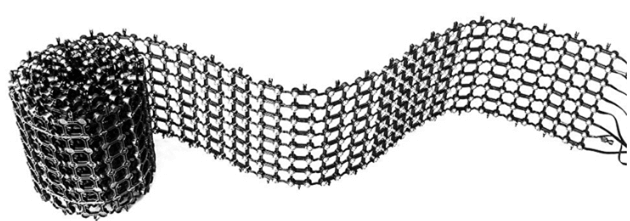

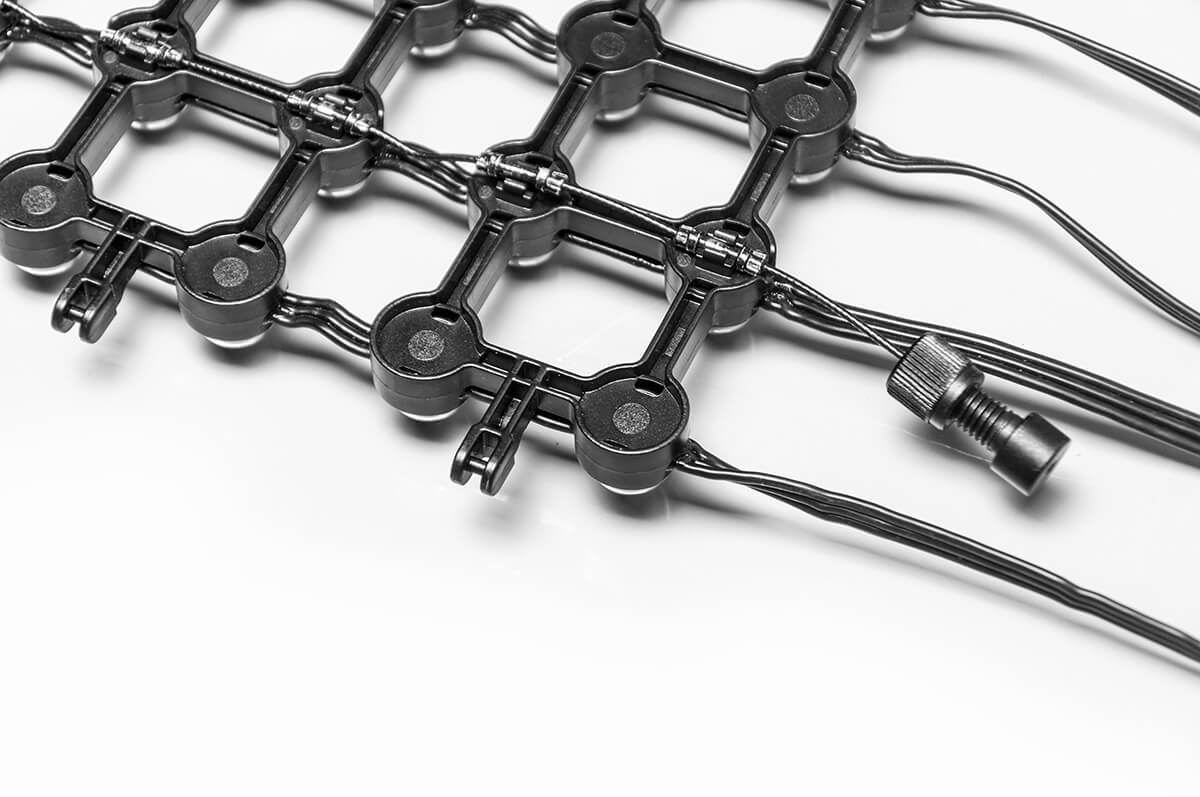

- Ultra flexible|Creatiable With the ability to create arches, circles, waves, or you can use the led strips along, etc.
- Ultra Transparency Up to 95% transparency, clear "seeing through"
Smart media facade, knows "invisible"
- Simple design and installation Fast set-up & removal, light-weight, easy to ship and maintain, it has never bean so easy and can be handled by a single person.
- All weather|High protection IP66, strong resistance of water, sunlight, UV, high temperature, low temperature, etc.
- Economic and Save your cost Cost-effective solution to build a largescreen with great effect
Specification:
| Model | G1-20 | G1-37.5 | G1-56.25 |

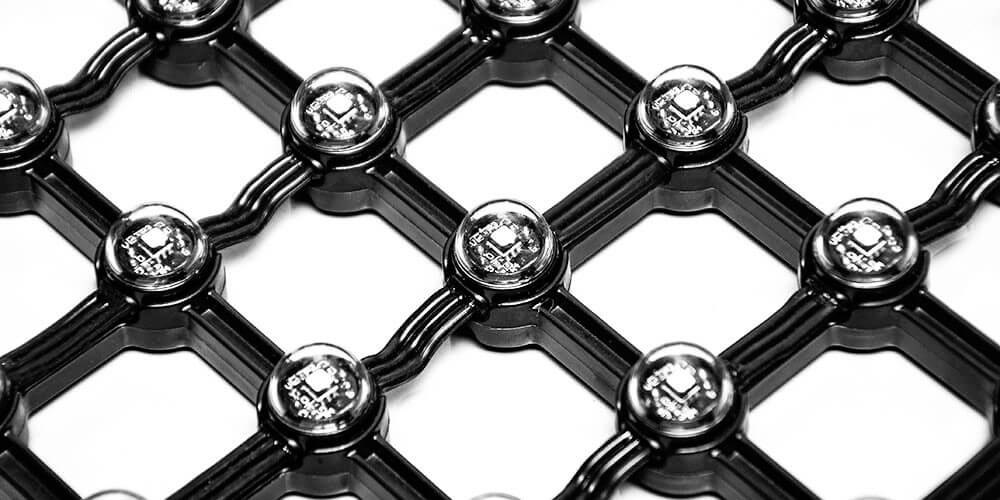

| Pixel configuration | 1*SMD3535 | 1*SMD3535 | 1*SMD3535 |
| Pixel Pitch(mm) | 20mm | 37.5mm | 56.25mm |
| Panel Resolution/(pixels) | 8*128dots | 8*128dots | 8*128dots |
| Panel size(WxHxD)/(mm) | 160*2560mm | 300*4800mm | 450*7200mm |
| Gray scale(bit) | 12bit | 12bit | 12bit |
| Gray scale per color | 8192 | 8192 | 8192 |
| Refresh Rate | ≥1920 | ≥1920 | ≥1920 |
| Scan Type | Static state | Static State | Static State |
| Frame Rate | 50/60 | 50/60 | 50/60 |
| Signal transmission distance(m) | CAT5＜100 m; 100m＜multi-mode optical fiber＜300m;300m＜single mode optical fiber＜10Km | ||
| Brightness(nits) | 6000nits | 1800 nits | 1200 nits |
| Color Temperature(K) | 5000K~9500K Adjustable | 5000K~9500K Adjustable | 5000K~9500K Adjustable |
| Horizontal/Vertical viewing angle(°) | 160°/140° | 160°/140° | 160°/140° |
| AC input voltage(V) | 100-240V/50-60Hz | 100-240V/50-60Hz | 100-240V/50-60Hz |
| Max AC input power consumption(W) | 1000W/sqm | 280W/sqm | 100W/sqm |
| Temperature | 0 ℃/+40℃(working); 40 ℃/ +60℃(storage) | ||
| IP rating(front|rear) | IP43|IP66 | IP43|IP66 | IP43|IP66 |
| Humidity | 10%~90% (working);10%~90% (storage) | ||
| Span life | 100,000 hours | 100,000 hours | 100,000 hours |
| Installation type | Fix|Rental | Fix|Rental | Fix|Rental |
