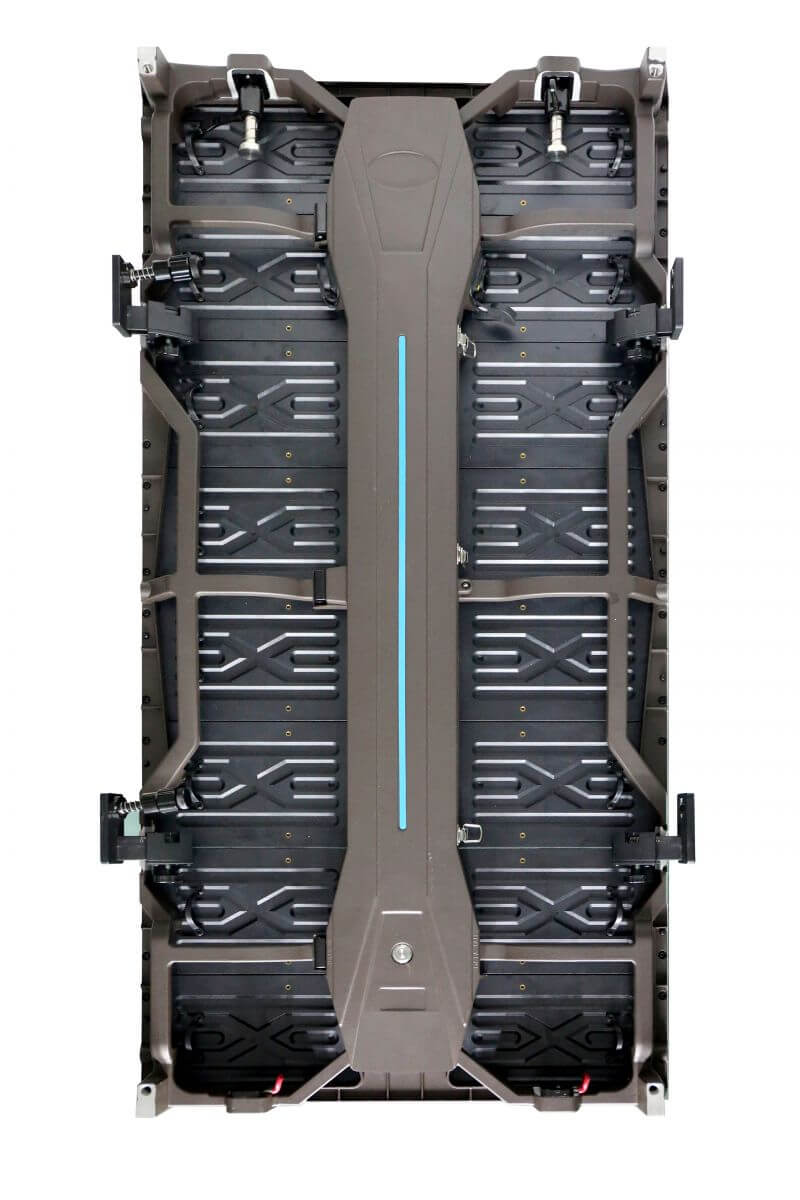

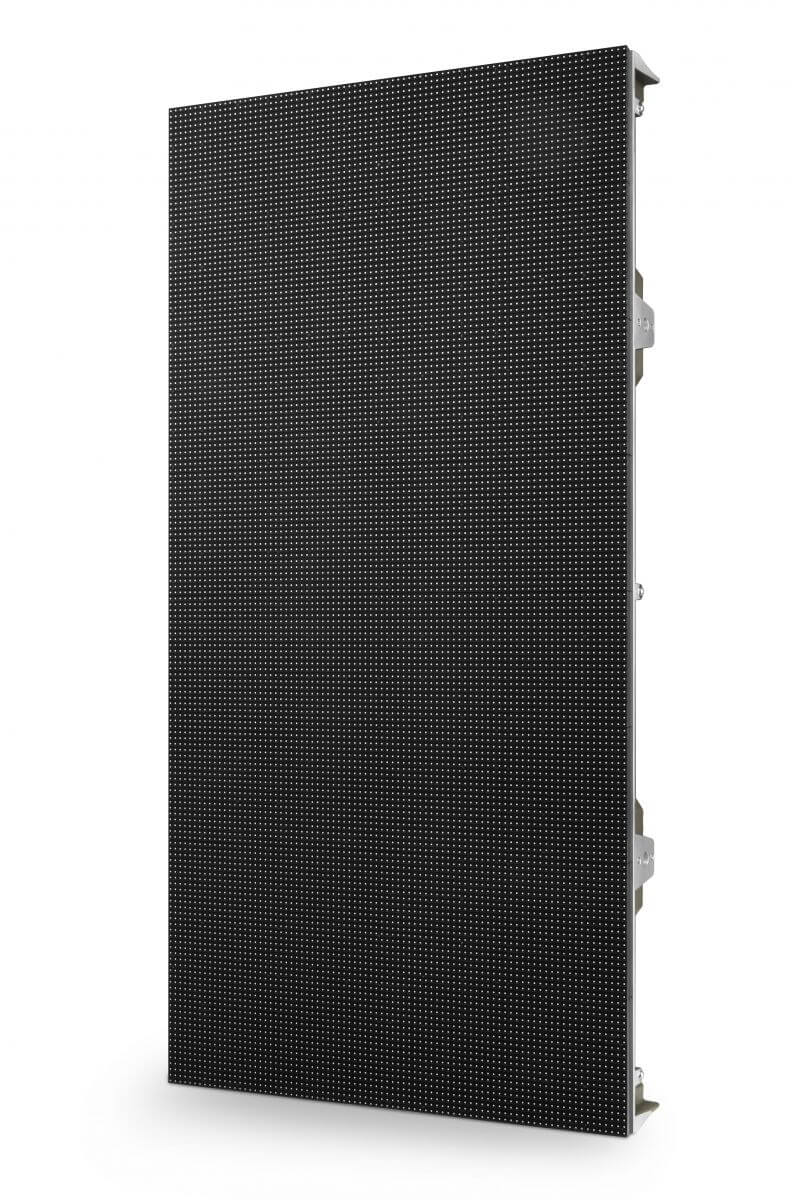

Appearance
Product Description
- Lightweight: The aluminum die-casting technology makes the single cabinet as light as 15KG.
- Wide viewing angle: The specially designed masks can make the horizontal viewing angle up to 150 degrees.
- Seamless connection: The aluminum die-casting technology,together white the hight-percision CNCprocession,makes the precision reach±0.05mm so as to achieve seamless assembly.
- Low power consumption: Combined with the brightness auto-adjusting technology and PFC power supply,Low current can save energy over 35%,which in other words is to save money.
- Easy to maintain: No need to disassemble the whole screen for maintenance.Each component can be detached individually for that purpose. Noiseless: The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.
- Ghost canceling: Exquisite and clear pict quality with no ghost.Both upstream and downstream ghosts can be automatically canceled.
- Hight refresh rate: Over 1880Hz refresh rate to ensure the picture wrinkle-less,line-less and stable.
- Low brightness and Hight gray scale:14Bit-16Bit gray scale to bring excellent performance when brightness is reduced to 20%.
Parameter
| Model | O4.8 | O5.95 | ||
|---|---|---|---|---|
| Pixel Pitch | 4.81mm | 5.95mm | ||
| Pixel Configuration: | RGB 3 in 1 | RGB 3 in 1 | ||
| LED Type | SMD3535 | SMD 3535 | ||
| Pixel Density/Sqm | 43264dots | 28224dots | ||
| Scan Mode | 1/13 scan | 1/7 scan | ||
| Module Size | 500*125mm | 500*125mm | ||
| Module Resolution | 104*26dots | 84*21dots | ||
| Panel Size | 500*1000*80mm | 500 *1000*80mm | ||
| Panel Resolution | 104*208dots | 84*168 dots | ||
| Brightness | 5000nits | 5000nits | ||
| Shortest Viewing Distance | 5m | 6m | ||
| Panel Weight | 14KG/Panel | 14KG/Panel | ||
| Max.Power Consumption | 300W/Panel | 300W/Panel | ||
| Ave.Power Consumption | 150W/Panel | 150W/Panel | ||
| Protection Level | front: IP65, Rear: IP65 | front: IP65, Rear: IP65 | ||
| Viewing Angle | 140°(H)/120°(V) | 140°(H)/120°(V) | ||
| Gray Scale | ≥14bit | ≥14bit | ||
| Color Type | 68 billion | 68 billion | ||
| Refresh Rate | ≥ 1920HZ | ≥ 1920HZ | ||
| Application | 0utdoor | 0utdoor | ||
| Controller | Synchronous Display with control PC by DVI | Synchronous Display with control PC by DVI | ||
| Power Supply | AC90-264V±10% | AC90-264V±10% | ||
| Working Environment | Temperature -10℃~+50℃,humidity 10-90% RH | Temperature -10℃~+50℃,humidity 10-90% RH | ||
| Color Temperature | 8000K | 8000K | ||
| Life Time | >100,000 hours | >100,000 hours | ||
| Certification | CE & RoHS | CE & RoHS | ||
